Web Servers

A web server is an application that runs on the back end server, which handles all of the HTTP traffic from the client-side browser, routes it to the requested pages, and finally responds to the client-side browser. Web servers usually run on TCP ports 80 or 443, and are responsible for connecting end-users to various parts of the web application, in addition to handling their various responses.

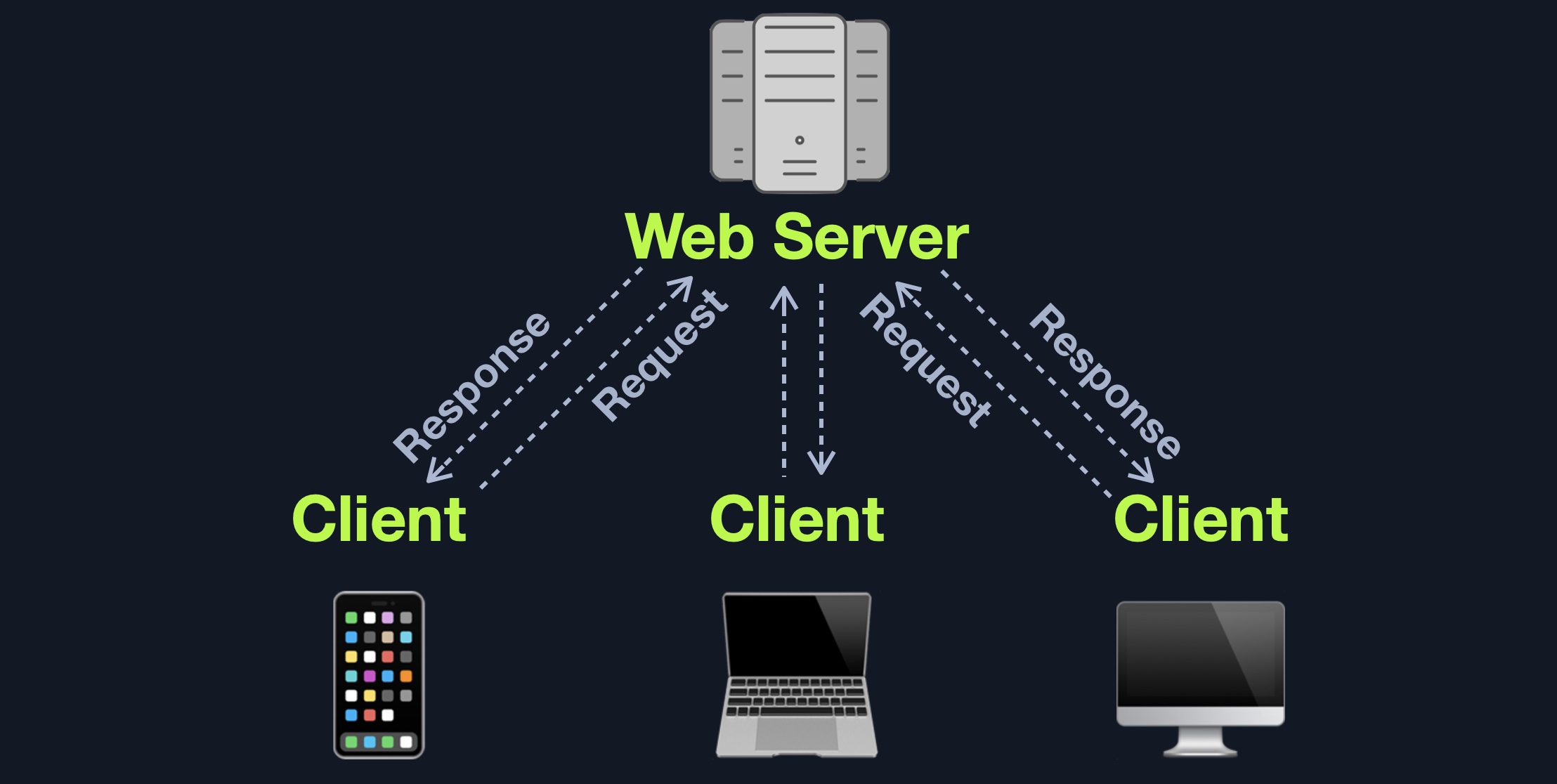

Workflow

A typical web server accepts HTTP requests from the client-side, and responds with different HTTP responses and codes, like a code 200 OK response for a successful request, a code 404 NOT FOUND when requesting pages that do not exist, code 403 FORBIDDEN for requesting access to restricted pages, and so on.

Successful responses

  • 200 OK - The request has succeeded

Redirection messages

  • 301 Moved Permanently - The URL of the requested resource has been changed permanently
  • 302 Found - The URL of the requested resource has been changed temporarily

Client error responses

  • 400 Bad Request - The server could not understand the request due to invalid syntax
  • 401 Unauthorized - Unauthenticated attempt to access page
  • 403 Forbidden - The client does not have access rights to the content
  • 404 Not Found - The server can not find the requested resource
  • 405 Method Not Allowed - The request method is known by the server but has been disabled and cannot be used
  • 408 Request Timeout - This response is sent on an idle connection by some servers, even without any previous request by the client

Server error responses

  • 500 Internal Server Error - The server has encountered a situation it doesn't know how to handle
  • 502 Bad Gateway - The server, while working as a gateway to get a response needed to handle the request, received an invalid response
  • 504 Gateway Timeout - The server is acting as a gateway and cannot get a response in time

Web servers also accept various types of user input within HTTP requests, including text, JSON, and even binary data (i.e., for file uploads). Once a web server receives a web request, it is then responsible for routing it to its destination, run any processes needed for that request, and return the response to the user on the client-side. The pages and files that the webserver processes and routes traffic to are the web application core files.

The following shows an example of requesting a page in a Linux terminal using the cURL utility, and receiving the server response while using the -I flag, which displays the headers:

kappajester83@htb[/htb]$ curl -I https://academy.hackthebox.com

HTTP/2 200
date: Tue, 15 Dec 2020 19:54:29 GMT
content-type: text/html; charset=UTF-8
...SNIP...

While this cURL command example shows us the source code of the webpage:

kappajester83@htb[/htb]$ curl https://academy.hackthebox.com

Many web server types can be utilized to run web applications. Most of these can handle all types of complex HTTP requests, and they are usually free of charge. We can even develop our own basic web server using languages such as Python, JavaScript, and PHP. However, for each language, there's a popular web application that is optimized for handling large amounts of web traffic, which saves us time in creating our own web server.

Apache

Apache 'or httpd' is the most common web server on the internet, hosting more than 40% of all internet websites. Apache usually comes pre-installed in most Linux distributions and can also be installed on Windows and macOS servers.

Apache is usually used with PHP for web application development, but it also supports other languages like .Net, Python, Perl, and even OS languages like Bash through CGI. Users can install a wide variety of Apache modules to extend its functionality and support more languages. For example, to support serving PHP files, users must install PHP on the back end server, in addition to installing the mod_php module for Apache.

Apache is an open-source project, and community users can access its source code to fix issues and look for vulnerabilities. It is well-maintained and regularly patched against vulnerabilities to keep it safe against exploitation. Furthermore, it is very well documented, making using and configuring different parts of the webserver relatively easy. Apache is commonly used by startups and smaller companies, as it is straightforward to develop for. Still, some big companies utilize Apache, including:

  • Apple
  • Adobe
  • Baidu

NGINX

NGINX is the second most common web server on the internet, hosting roughly 30% of all internet websites. NGINX focuses on serving many concurrent web requests with relatively low memory and CPU load by utilizing an async architecture to do so. This makes NGINX a very reliable web server for popular web applications and top businesses worldwide, which is why it is the most popular web server among high traffic websites, with around 60% of the top 100,000 websites using NGINX.

NGINX is also free and open-source, which gives all the same benefits previously mentioned, like security and reliability. Some popular websites that utilize NGINX include:

  • Google
  • Facebook
  • Twitter
  • Cisco
  • Intel
  • Netflix
  • HackTheBox

IIS

IIS (Internet Information Services) is the third most common web server on the internet, hosting around 15% of all internet web sites. IIS is developed and maintained by Microsoft and mainly runs on Microsoft Windows Servers. IIS is usually used to host web applications developed for the Microsoft .NET framework, but can also be used to host web applications developed in other languages like PHP, or host other types of services like FTP. Furthermore, IIS is very well optimized for Active Directory integration and includes features like Windows Auth for authenticating users using Active Directory, allowing them to automatically sign in to web applications.

Though not the most popular web server, many big organizations use IIS as their web server. Many of them use Windows Server on their back end or rely heavily on Active Directory within their organization. Some popular websites that utilize IIS include:

  • Microsoft
  • Office365
  • Skype
  • Stack Overflow
  • Dell

Aside from these 3 web servers, there are many other commonly used web servers, like Apache Tomcat for Java web applications, and Node.JS for web applications developed using JavaScript on the back end.

Questions

If a web server returns an HTTP code 201, what does it stand for?
